Pump Systems

What is Included in a Lindsay Drilling Pump System?

  • Pump, Motor, Control Box
  • Tank
  • Pipe in Well
  • Wire in Well
  • Pitless Adapter
  • Fittings
  • Check Valves
  • Hydrant
  • Pipe and Wire for Ditch

We believe that quality and economy go hand-in-hand. Our pump systems are designed to be as trouble-free for as long as possible. All materials and equipment we install are guaranteed through a manufacturer’s warranty. In addition, Lindsay Drilling’s service department is trained and experienced in all types of pump and well service. The pump service rigs use the latest in hydraulic equipment. These units are outfitted with a full stock of parts and equipment to maintain efficient and economical service. Modern equipment in the hands of experienced servicemen allows us to solve your water problems quickly and at a minimum expense.

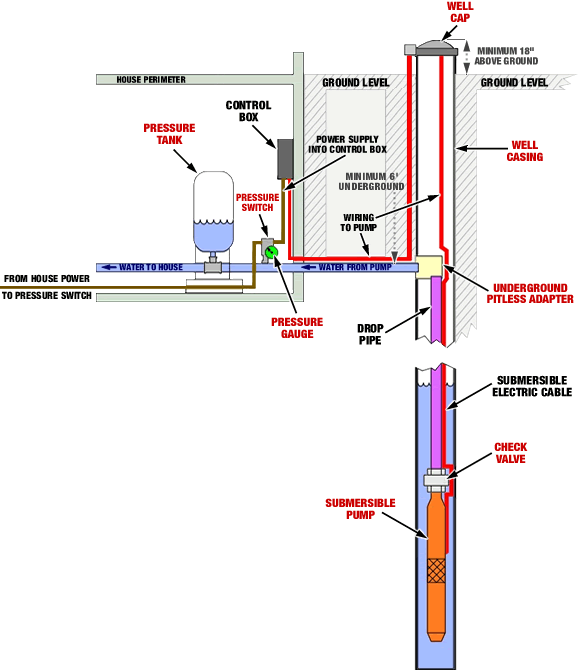

Water Pump System Schematic

Well Cap

The well cap provides a watertight seal when the inner gasket compresses to the outside diameter of the casing. The top of the well cap removes easily to access the well for servicing.

Well Casing

The first 25 feet of well casing must be steel per state standards. The remaining casing that is used is determined by the formation of the ground whether it be PVC plastic or steel.

Pressure Tank

The pressure tank is a storage vessel containing air and water that provides storage of water under pressure for delivery between pump cycles; allows for reserve capacity for periods of peak demand; protects and extends the life of the pump by reducing the number of on/off cycles; and helps reduce overall system maintenance.

Pressure Switch

The pressure tank is a storage vessel containing air and water that provides storage of water under pressure for delivery between pump cycles; allows for reserve capacity for periods of peak demand; protects and extends the life of the pump by reducing the number of on/off cycles; and helps reduce overall system maintenance.

Pressure Gauge

The pressure gauge indicates how much air pressure is found in the pressure tank.

Underground Pitless Adapter

Pitless adapters provide wells with a sanitary – and frost-proof – seal between the well casing and the water line running to the well system owner’s house. After a frost line is determined for the area where the well is being installed, the adapter is connected to the well casing below the frost line. Water from the well is then diverted horizontally at the adapter to prevent it from freezing.

Check Valve

The check valve is located at the top of the pump to hold water in the tank and prevent backflow through the pump.

Submersible Pump

The submersible pump is a machine capable of lifting, raising or moving water from a well or tank to a higher elevation or a distant location. A pump can create pressure and/or increase the velocity of water. There are several unique features to submersible pumps such as:

  • All water pumped from the well is delivered to the service outlet, no water is recirculated.
  • Submersible pumps have a reduced power consumption which results in lower operating expenses.
  • As capacity and pumping depth requirements increase, submersible pump installations and performance advantages increase.
  • Multi-staging of the centrifugal impellers and diffusers permits matching the pump to the well capacity and the required service conditions.
  • Development of corrosion/abrasion resistant materials and improved manufacturing methods assure the pump has a long life.
